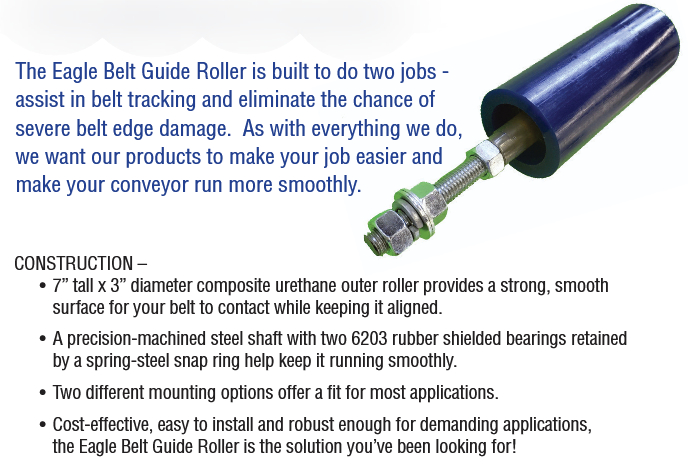

The Eagle Belt Guide Roller is built to do two jobs – assist in belt tracking and eliminate the chance of assist in belt tracking and eliminate the chance of severe belt edge damage. As with everything we do, we want our products to make your job easier and make your conveyor run more smoothly.
CONSTRUCTION –
• 7” tall x 3” diameter composite urethane outer roller provides a strong, smooth surface for your belt to contact while keeping it aligned.
• A precision-machined steel shaft with two 6203 rubber shielded bearings retained by a spring-steel snap ring help keep it running smoothly.
• Two different mounting options offer a fit for most applications.
• Cost-effective, easy to install and robust enough for demanding applications, the Eagle Belt Guide Roller is the solution you’ve been looking for!

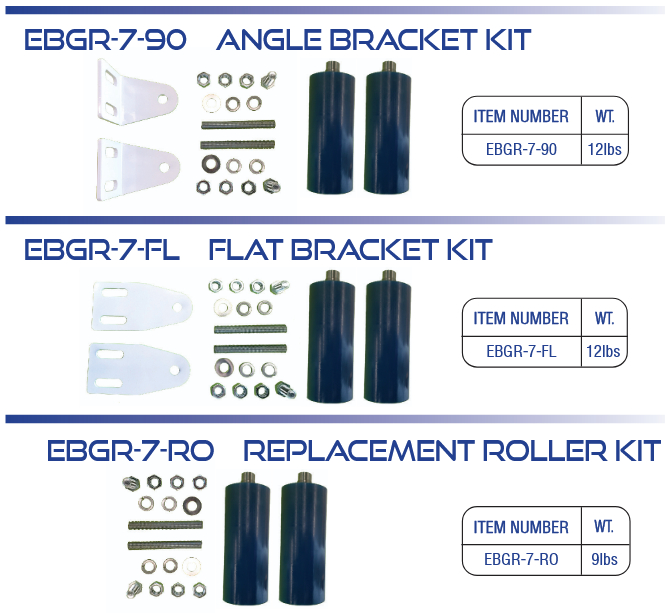

| ITEM NUMBER | WT |
|---|---|
| EBGR-7-90 | 12lbs |
| ITEM NUMBER | WT |
|---|---|
| EBGR-7-FL | 12lbs |
| ITEM NUMBER | WT |
|---|---|
| EBGR-7-RO | 9lbs |
