Dust Containment

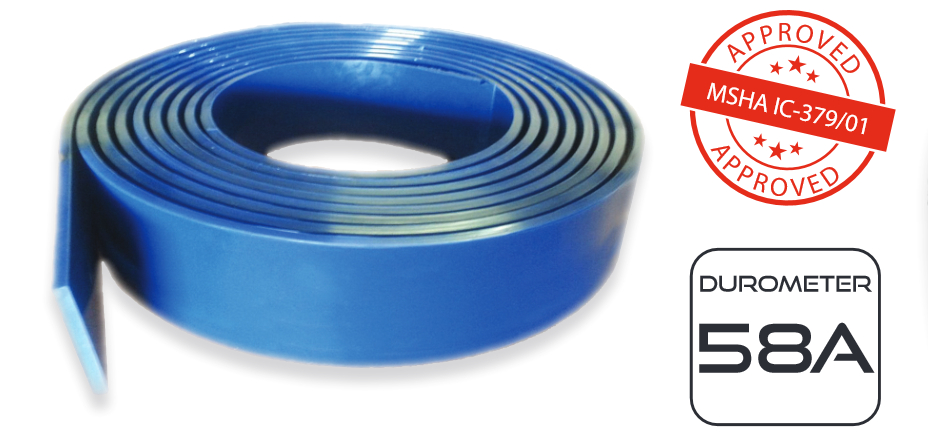

Our Urethane Blue-Flex™ Skirtboard is the solution for dust containment in bulk transfer points. Designed to have low coefficient friction that reduces drag, Blue-Flex™ combines a high tensile strength resulting in longer wear and less tearing compared to rubber skirtboard. The benefits extend beyond dust containment to less maintenance cost, less downtime for replacement and less overall belting and motor fatigue.
Benefits of Blue-Flex™
- Special 58A urethane compound
- Additives for lubricity
- 60% lower coefficient of friction
- Reduced drag
- 3-4 times wear life over rubber
Profiles Available
- Straight (-A)
- 20° Angle (-B)
- 35° Angle (-C)

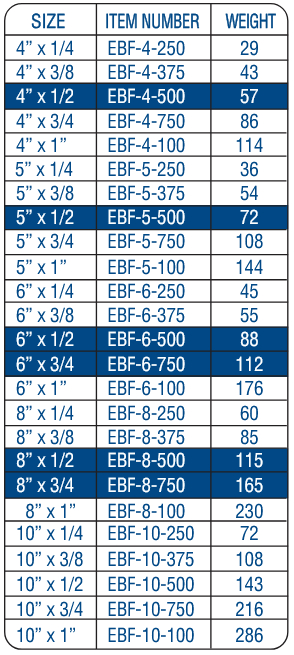

Ordering Part Number
Blue-Flex™ comes in standard 50’ rolls with 35° side and 90° on other side.
| SIZE | PART NUMBER |
|---|---|
| 8" x 3/4" | EBF-8-750 |
| 8" x 1" | EBF-8-100 |
| 10" x 1/4" | EBF-10-250 |
| 10" x 3/8" | EBF-10-375 |
| 10" x 1/2" | EBF-10-500 |
| 10" x 3/4" | EBF-10-750 |
| 10" x 1" | EBF-10-100 |
| 12" x 1/4" | EBF-12-250 |
| 12" x 3/8" | EBF-12=375 |
| 12" x 1/2" | EBF-12-500 |
| 12" x 3/4" | EBF-12-750 |
| 12" x 1" | EBF-12-100 |
| SIZE | PART NUMBER |
|---|---|
| 4" x 1/4" | EBF-4-250 |
| 4" x 3/8" | EBF-4-375 |
| 4" x 1/2" | EBF-4-500 |
| 4" x 3/4" | EBF-4-750 |
| 4" x 1" | EBF-4-100 |
| 6" x 1/4" | EBF-6-250 |
| 6" x 3/8" | EBF-6-375 |
| 6" x 1/2" | EBF-6-500 |
| 6" x 3/4" | EBF-6-750 |
| 6" x 1" | EBF-6-100 |
| 8" x 1/4" | EBF-8-250 |
| 8" x 3/8" | EBF-8-375 |
| 8" x 1/2" | EBF-8-500 |
