The Eagle PolyStar Multi-Purpose Belt Cleaner is designed to clean cleated, raised rib and many types of chevron belts. Our unique patent pending PolyStar is designed to reduced clogging associated with standard brush type cleaners. Each PolyStar is independent with flexible fingers moving to conform to belt profiles. The cleaner is free-rotating on a standard tube design.
PolyStar
Formulated with abrasion resistant urethane that will out last rubber 3 to 1. FDA Poly-Star are available for food applications upon request
Features and Benefits
- 8 1/2″ Diameter Poly-Star
- Heavy duty mounting tube
- Adjustable mounting bracket
- All components powder coated
- Compatible with mechanical and vulcanized splices
- Will work on reversible belt applications
- Compact design
- Handles corrosive and abrasive materials (wet or dry)
Specifications and Guidelines
Tensioner Type: Hand Tensioner
PolyStar Diameter: 8″
Belt Speed: Max 1000 FPM (304.8 m/min)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)

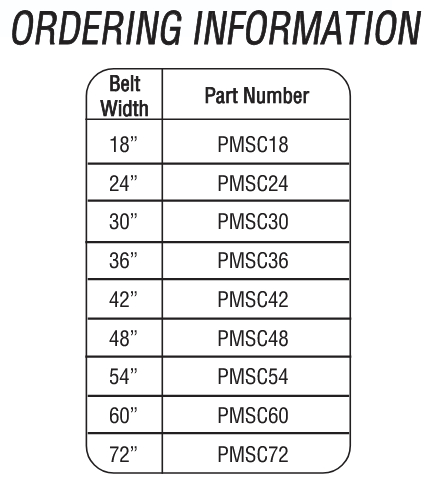

Ordering Part Number
| Belt Width | Part Number |
|---|---|
| 18” | PMSC18 |
| 24” | PMSC24 |
| 30” | PMSC30 |
| 36” | PMSC36 |
| 42” | PMSC42 |
| 48” | PMSC48 |
| 54” | PMSC54 |
| 60” | PMSC60 |
| 72” | PMSC72 |
PolyStar Replacements
| PolyStar Replacement Chart | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Belt Width | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 72 |
| Orange PSO-1 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 48 |
| Blue PSB-1 | 12 | 16 | 20 | 24 | 28 | 32 | 36 | 40 | 48 |
| Total | 24 | 32 | 40 | 48 | 56 | 64 | 72 | 80 | 96 |
