Urethane Magnetic Liner

Without careful handling, there has historically been a risk of cracking or breaking magnets during installation.

Without careful placement, the magnets, standing proud from the surface of the urethane or rubber liner, could easily slide out of position.



Without careful maintenance, magnets will oxidize, reducing the bond between magnet and urethane, and eventually, compromising the pull between magnet and wall.

Our newly redesigned magnetic liner panels protect the magnet by encapsulating it while still providing superior magnetic pull to hold the liner in place, even under aggressive conditions.

No drilling, no measuring, no welding. No more chips or breaking, no more oxidation, no more losing magnets.

“INNOVATIVE SOLUTIONS FOR EVERYDAY PROBLEMS.”

*16 magnets per square foot equals 175 lbs of pull per square foot

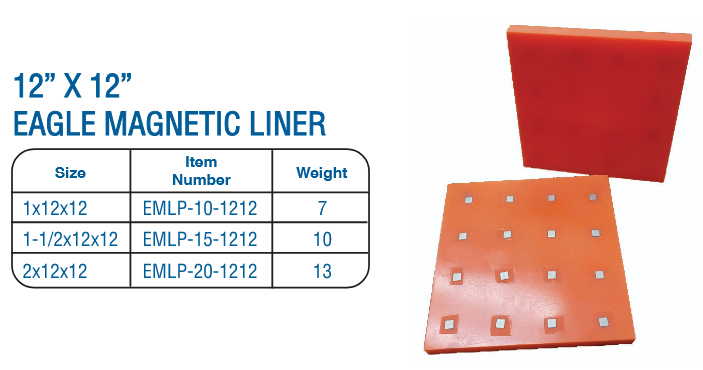

12” X 12” EAGLE MAGNETIC LINER

SizeItem
Number
Weight
1x12x12EMLP-10-12127
1-1/2x12x12EMLP-15-121210
2x12x12EMLP-20-121213

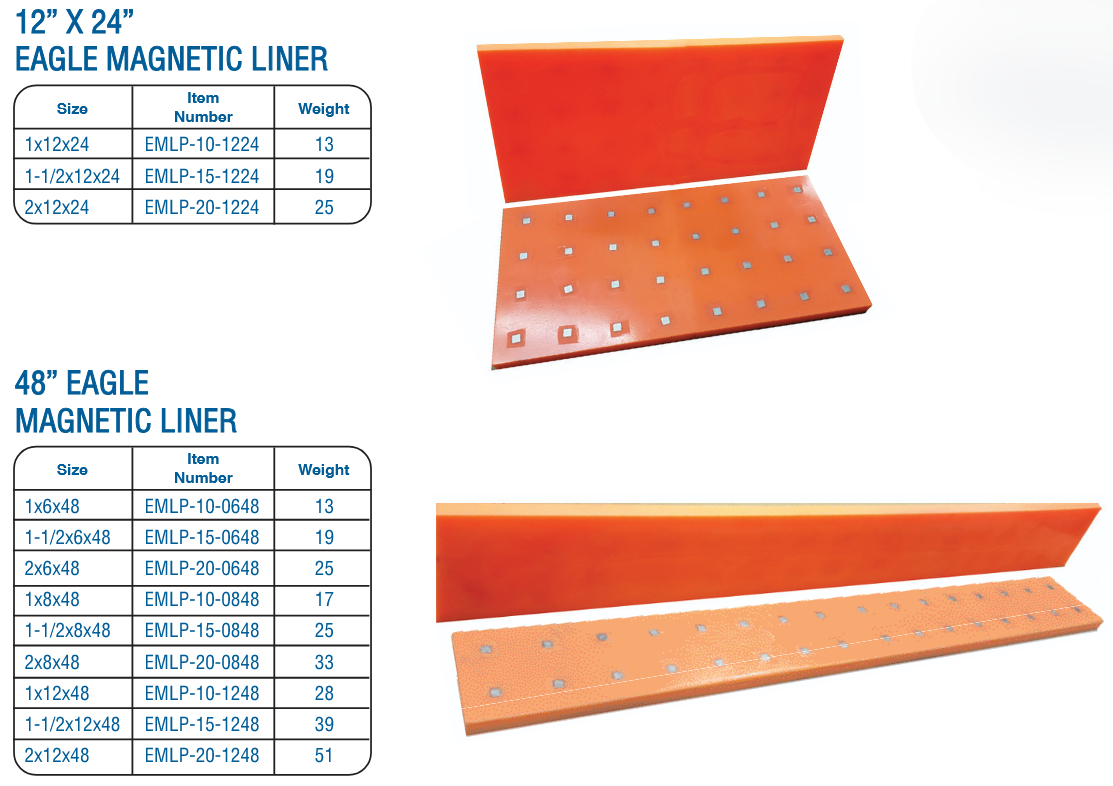

12” X 24” EAGLE MAGNETIC LINER

SizeItem
Number
Weight
1x12x24 EMLP-10-122413
1-1/2x12x24EMLP-15-122419
2x12x24EMLP-20-122425





48” EAGLE MAGNETIC LINER

SizeItem
Number
Weight
1x6x48EMLP-10-064813
1-1/2x6x48EMLP-15-064819
2x6x48EMLP-20-064825
1x8x48EMLP-10-084817
1-1/2x8x48EMLP-15-084825
2x8x48EMLP-20-084833
1x12x48EMLP-10-124828
1-1/2x12x48EMLP-15-124839
2x12x48EMLP-20-124851
