E9 Diagonal Plow

e9-diagonal-plow-cleaner_0

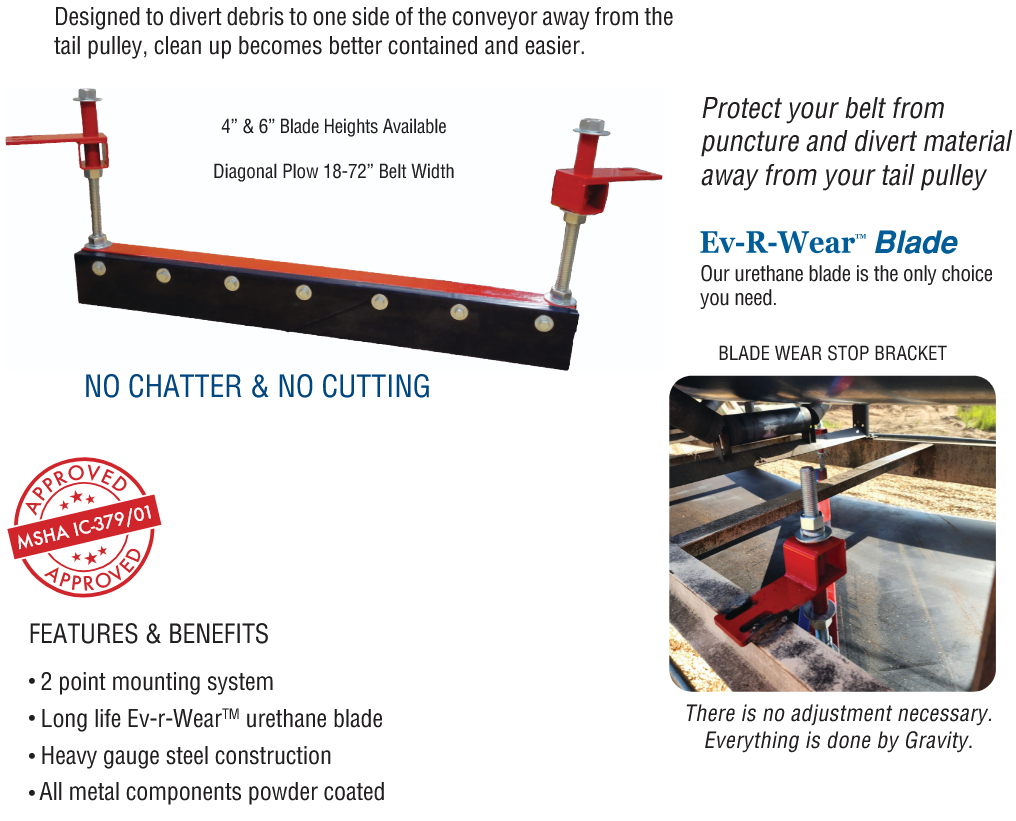

Designed to divert debris to one side of the conveyor away from the tail pulley, clean up becomes better contained and easier.

e9-diagonal-plow-cleaner1

Premium Urethane Blade

Our urethane blade is the only choice you need.

Features and Benefits

  • 2 point mounting system
  • Long life premium urethane blade
  • Heavy gauge steel construction
  • All metal components powder coated
  • Compatible with reversible belts

Specifications and Guidelines

Tensioner Type: Self Adjusting
Blade Height: 4″ or 6″
Belt Speed: Max 1000 FPM (304.8 m/min)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)

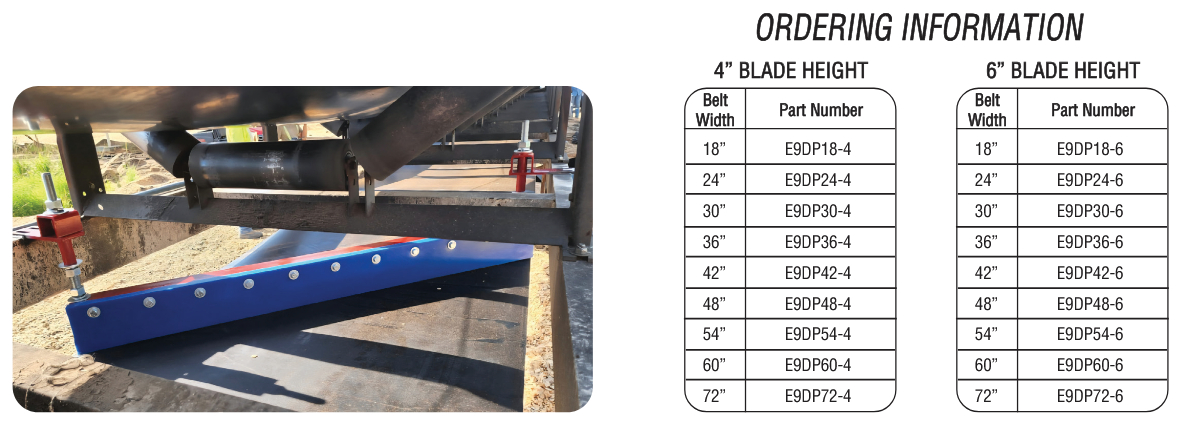

Ordering Part Number

BELT WIDTHPART NUMBER WITH 4" BLADEBELT WIDTHPART NUMBER WITH 6" BLADE
18”E9DP18-418”E9DP18-6
24”E9DP24-424”E9DP24-6
30”E9DP30-430”E9DP30-6
36”E9DP36-436”E9DP36-6
42”E9DP42-442”E9DP42-6
48”E9DP48-448”E9DP48-6
54”E9DP54-454”E9DP54-6
60”E9DP60-460”E9DP60-6
72”E9DP72-472”E9DP72-6

Belt Cleaning Brochure

Product Resources

Cutsheet
