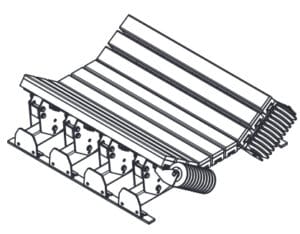

Impact beds are designed and engineered to absorb the impact of falling material to prevent damage to the belt and protect the underlying structure. But in addition, and just as importantly, impact beds support the belt in the load zone in order for proper skirting-contact to be maintained throughout, reducing the chances of spillage and dust.
These beds now feature wing rollers to reduce friction as the belt leads into the load zone, reducing the chances of both damage and wear to the belt itself.
Features and Benefits
- Maintenance friendly eagle wings will drop down for quick slider bar replacement
- Impact bars molded of a composite low friction material for long life and eliminates drag on the belt
- Total containment when combined with a skirting system
- Heavy gauge steel construction
- All metal components powder coated
- Skirting recommendation – Blue-Flex™ – is the premier skirting for all spillage control
- Foot mounts allow for integration of a modular wall system
What’s In Your Load Zone?
Specifications and Guidelines
Belt Speed: Max 800 FPM (5m/sec)
Temperature Rating: -40F° to 180F° (-40C° to 82C°)
Belt Widths Available: 24″ to 72″ (600 to 1800mm)
Impact Bar Material: Composite molded plastic with rubber body and aluminum extrusion
Bed Lengths Available: 48″ to 60″ (1200 to 1500mm)
Ordering Part Number
48” bed will accommodate 20, 35, 45 degree troughing rollers
BELT WIDTH | PART NUMBER | BED LENGTH | FRAME QTY | BARS QTY |
---|---|---|---|---|
24" | EIBH24-48 | 48" | 4 | 6 |
30" | EIBH30-48 | 48" | 4 | 6 |
36" | EIBH36-48 | 48" | 4 | 9 |
42" | EIBH42-48 | 48" | 4 | 9 |
48" | EIBH48-48 | 48" | 4 | 12 |
54" | EIBH54-48 | 48" | 4 | 12 |
60" | EIBH60-48 | 48" | 4 | 15 |
72" | EIBH72-48 | 48" | 4 | 15 |
60” bed will accommodate 20, 35, 45 degree troughing rollers
BELT WIDTH | PART NUMBER | BED LENGTH | FRAME QTY | BARS QTY |
---|---|---|---|---|
24" | EIBH24-60 | 60" | 4 | 6 |
30" | EIBH30-60 | 60" | 4 | 6 |
36" | EIBH36-60 | 60" | 4 | 9 |
42" | EIBH42-60 | 60" | 4 | 9 |
48" | EIBH48-60 | 60" | 4 | 12 |
54" | EIBH54-60 | 60" | 4 | 12 |
60" | EIBH60-60 | 60" | 4 | 15 |
72" | EIBH72-60 | 60" | 4 | 15 |
