Impact & Roll beds are designed and engineered to absorb the impact of falling material to prevent damage to the belt and protect the underlying structure. But in addition, and just as importantly, impact beds support the belt in the load zone in order for proper skirting-contact to be maintained throughout, reducing the
chances of spillage and dust.
These beds now feature wing rollers to reduce friction as the belt leads into the load zone, reducing the chances of both damage and wear to the belt itself.
Features and Benefits
- Maintenance friendly eagle wings will drop down for quick slider bar replacement
- Slider bars molded of a composite low friction material for long life and eliminates drag on the belt
- Total containment when combined with a skirting system
- Heavy gauge steel construction
- All metal components powder coated
- Standard foot brackets allow for integration of a complete load zone system
What’s In Your Load Zone?
Specifications and Guidelines
Belt Speed: Max 800 FPM (5m/sec)
Temperature Rating: -40F° to 180F° (-40C° to 82C°)
Belt Widths Available: 24″ to 72″ (600 to 1800mm)
Impact Bar Material: Composite molded plastic with rubber body and aluminum extrusion
Bed Lengths Available: 48″ to 60″ (1200 to 1500mm)
Ordering Part Number

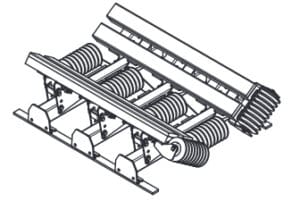

| 48" bed will accomodate 20, 35, 45 degree troughing rollers | ||||
|---|---|---|---|---|
| BELT WIDTH | PART NUMBER | BED LENGTH | FRAME QTY | BARS QTY |
| 24" | EIRB24-48 | 48" | 3 | 4 |
| 30" | EIRB30-48 | 48" | 3 | 4 |
| 36" | EIRB36-48 | 48" | 3 | 6 |
| 42" | EIRB42-48 | 48" | 3 | 6 |
| 48" | EIRB48-48 | 48" | 3 | 8 |
| 54" | EIRB54-48 | 48" | 3 | 8 |
| 60" | EIRB60-48 | 48" | 3 | 10 |
| 72" | EIRB72-48 | 48" | 3 | 10 |
| 60" bed will accomodate 20, 35, 45 degree troughing rollers | ||||
|---|---|---|---|---|
| BELT WIDTH | PART NUMBER | BED LENGTH | FRAME QTY | BARS QTY |
| 24" | EIRB24-60 | 60" | 3 | 4 |
| 30" | EIRB30-60 | 60" | 3 | 4 |
| 36" | EIRB36-60 | 60" | 3 | 6 |
| 42" | EIRB42-60 | 60" | 3 | 6 |
| 48" | EIRB48-60 | 60" | 3 | 8 |
| 54" | EIRB54-60 | 60" | 3 | 8 |
| 60" | EIRB60-60 | 60" | 3 | 10 |
| 72" | EIRB72-60 | 60" | 3 | 10 |
