Eagle Compression System
- Compact
- Stainless Assembly
to Extend Life - Self-Adjusting
- Features propeller nut to
simplify tensioning in
the field
Ev-R-Wear™ Blade
Our special formulated urethane with additives has been tested and proven to last longer than any other blade on the market.
- Premium urethane
- Additive for lubricity (non-stick)
- Additive for high abrasion
“With over 35 years molding experience.”

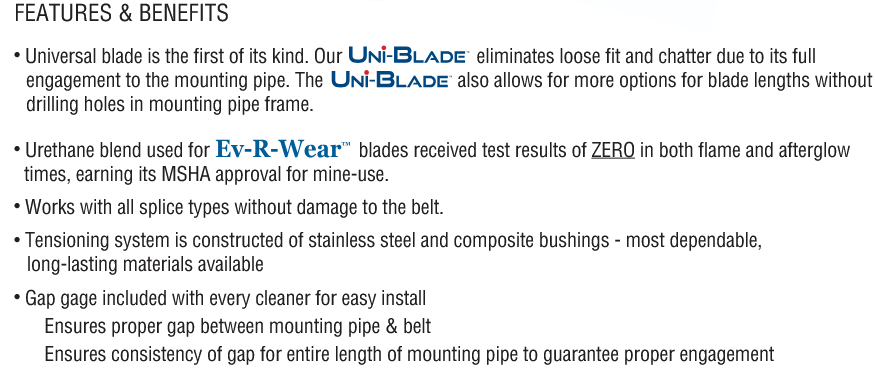

Features and Benefits
• Urethane blend used for blades received test results of ZERO in both flame and afterglow
times, earning its MSHA approval for mine-use.
• Works with all splice types without damage to the belt.
• Fits most conveyor systems because of its availability for belt widths ranging 24” to 72”
• No tools required for blade replacement
• Tensioning system is constructed of stainless steel and urethane – most dependable,
long-lasting materials available
• Gap gage included with every cleaner for easy install
Ensures proper gap between mounting pipe & belt
Ensures consistency of gap for entire length of mounting pipe to guarantee proper engagement
Universal Mounting Bracket
- Flange mounted with elongated holes allowing for easy alignment of installation
- Composite molded bushing eliminates corrosion and build-up between bracket and mounting tube. Allow constant blade pressure to belt
- Set screw that allows pre-tensioning of cleaner making it more accurate
Designed with your maintenance personnel’s safety and time in mind!
Specifications and Guidelines
Tensioner Type: Eagle Compression System
Blade Height: 6 5/8″
Pulley Diameter: 24″ Plus (600+ mm)
Belt Speed: Max 1200 FPM (5 m/sec)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)
Available in Stainless Steel

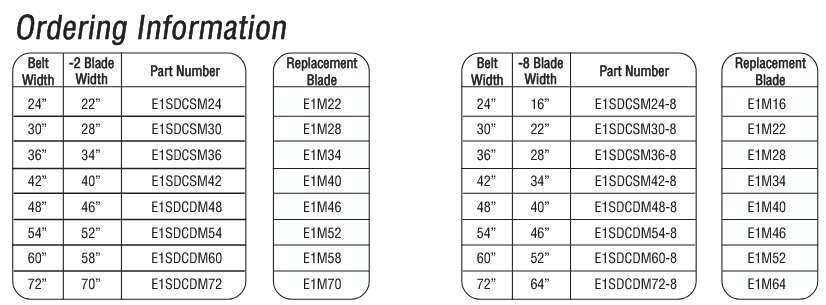

Ordering Part Number
BELT WIDTH | -2" BLADE WIDTH | PART NUMBER | -8" BLADE WIDTH | PART NUMBER |
---|---|---|---|---|
24” | 22” | E1SDCSM24 | 16” | E1SDCSM24-8 |
30” | 28” | E1SDCSM30 | 22" | E1SDCSM30-8 |
36” | 34” | E1SDCSM36 | 28" | E1SDCSM36-8 |
42” | 40” | E1SDCSM42 | 34" | E1SDCSM42-8 |
48” | 46” | E1SDCDM48 | 40" | E1SDCDM48-8 |
54” | 52” | E1SDCDM54 | 46" | E1SDCDM54-8 |
60” | 58” | E1SDCDM60 | 52" | E1SDCDM60-8 |
72” | 70” | E1SDCDM72 | 64" | E1SDCDM72-8 |
Replacement Blades
Eagle Ev-R-Wear™ High Performance Blue 85A | Urethane Polyurethane Orange 85A | Chemical / Acid Resistant Green 80A | High Heat -40 to 300 °F Red 95A | Food Grade Polyurethane White 85A |
