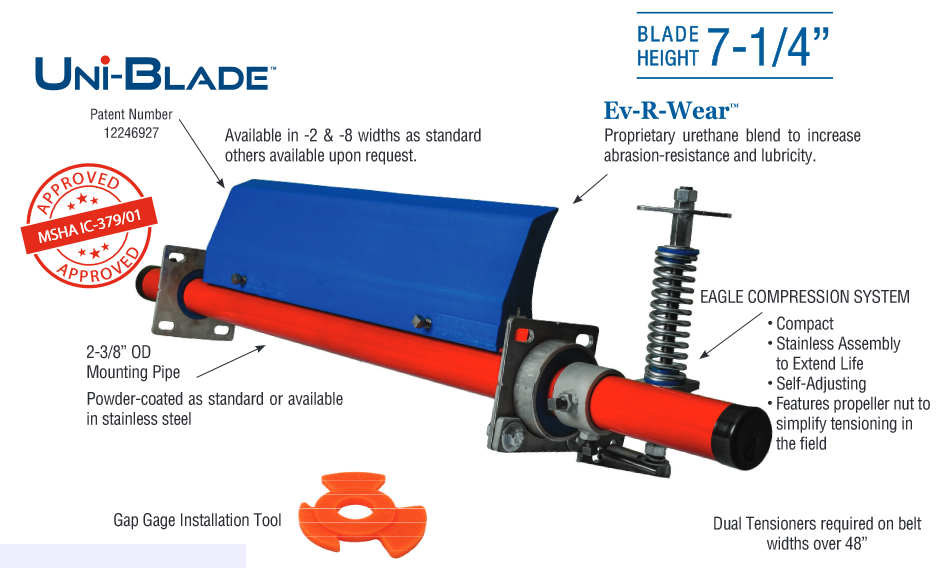

Eagle Compression System
- Compact
- Stainless Assembly
to Extend Life - Self-Adjusting
- Features propeller nut to
simplify tensioning in
the field
Ev-R-Wear™ Blade
Our special formulated urethane with additives has been tested and proven to last longer than any other blade on the market.
- Premium urethane
- Additive for lubricity (non-stick)
- Additive for high abrasion
“With over 35 years molding experience.”

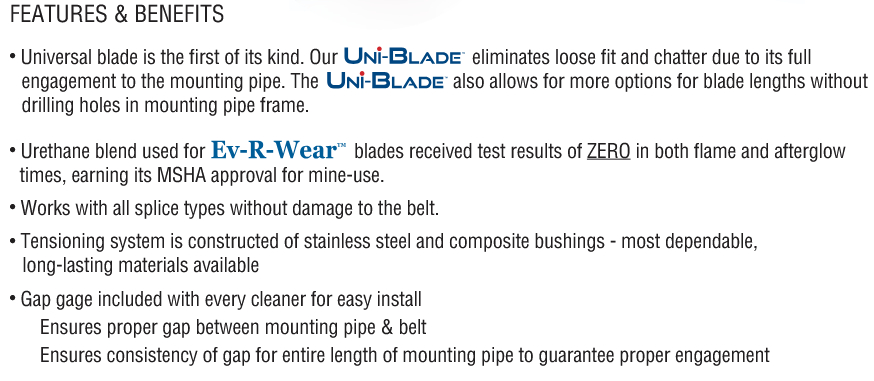

Features and Benefits
• Urethane blend used for blades received test results of ZERO in both flame and afterglow
times, earning its MSHA approval for mine-use.
• Works with all splice types without damage to the belt.
• Fits most conveyor systems because of its availability for belt widths ranging 24” to 72”
• No tools required for blade replacement
• Tensioning system is constructed of stainless steel and urethane – most dependable,
long-lasting materials available
• Gap gage included with every cleaner for easy install
Ensures proper gap between mounting pipe & belt
Ensures consistency of gap for entire length of mounting pipe to guarantee proper engagement
Universal Mounting Bracket
- Flange mounted with elongated holes allowing for easy alignment of installation
- Composite molded bushing eliminates corrosion and build-up between bracket and mounting tube. Allow constant blade pressure to belt
- Set screw that allows pre-tensioning of cleaner making it more accurate
Designed with your maintenance personnel’s safety and time in mind!

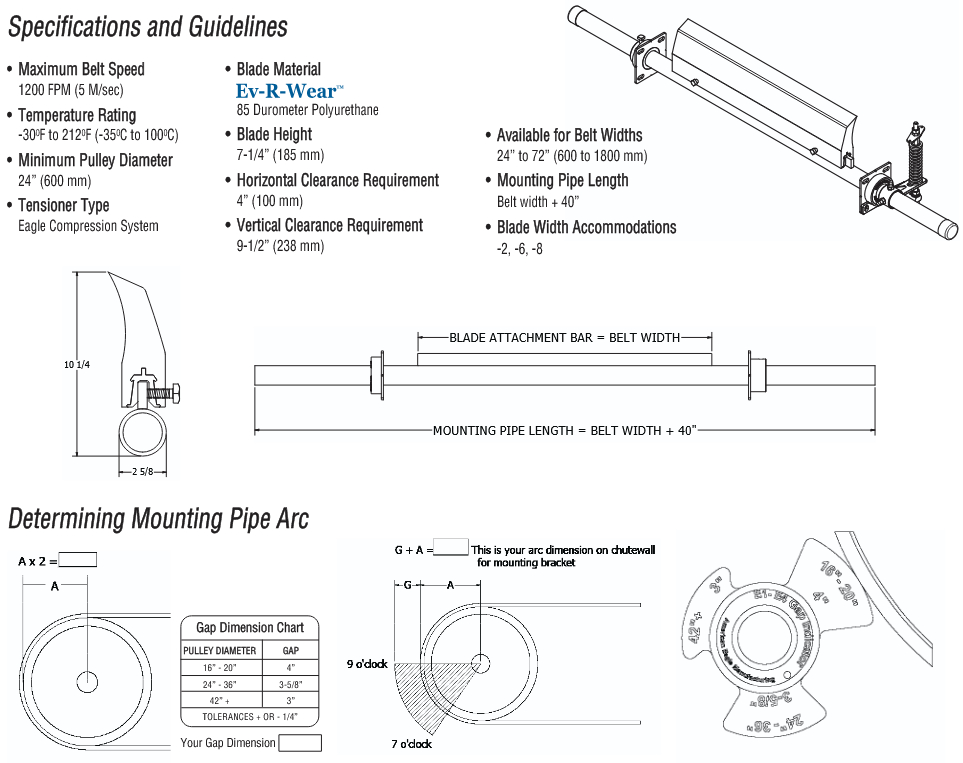

Specifications and Guidelines
Tensioner Type: Eagle Compression System
Blade Height: 7 1/4″
Pulley Diameter: 30″ Plus (750+ mm)
Belt Speed: Max 1200 FPM (5 m/sec)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)
Available in Stainless Steel

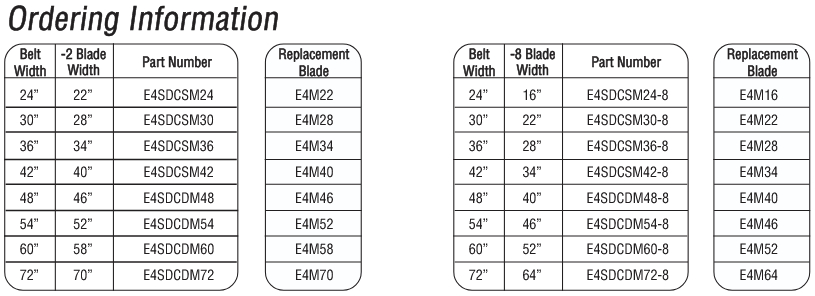

Ordering Part Number
| BELT WIDTH | -2" BLADE WIDTH | PART NUMBER | -8" BLADE WIDTH | PART NUMBER |
|---|---|---|---|---|
| 24” | 22” | E4SDCSM24 | 16” | E4SDCSM24-8 |
| 30” | 28” | E4SDCSM30 | 22" | E4SDCSM30-8 |
| 36” | 34” | E4SDCSM36 | 28" | E4SDCSM36-8 |
| 42” | 40” | E4SDCSM42 | 34" | E4SDCSM42-8 |
| 48” | 46” | E4SDCDM48 | 40" | E4SDCDM48-8 |
| 54” | 52” | E4SDCDM54 | 46" | E4SDCDM54-8 |
| 60” | 58” | E4SDCDM60 | 52" | E4SDCDM60-8 |
| 72” | 70” | E4SDCDM72 | 64" | E4SDCDM72-8 |
Replacement Blades
 |  |  |  |  |
| Eagle Ev-R-Wear™ High Performance Blue 85A | Urethane Polyurethane Orange 85A | Chemical / Acid Resistant Green 80A | High Heat -40 to 300 °F Red 95A | Food Grade Polyurethane White 85A |
