E1HP Primary Belt Cleaner

Patent Number 8,485,344 B1
AVAILABLE IN ALL STAINLESS STEEL



Eagle Torsion™ System

This revolutionary design is the simplest and most accurate tensioning system on the market. Only 4 components make up the Eagle Torsion™ System.

  • Universal torsion mounting bracket
  • Stainless steel spring
  • Eagle Torsion™ ring
  • Tension indicator ring

Ev-R-Wear™ Blade

Our special formulated urethane with additives has been tested and proven to last longer than any other blade on the market.

  • Premium urethane
  • Additive for lubricity (non-stick)
  • Additive for high abrasion

“With over 35 years molding experience”

Eagle Primary Cleaner newly installed in a quarry

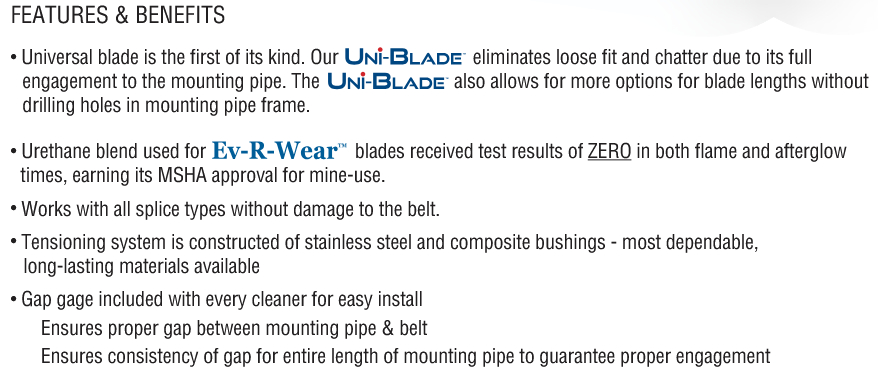

Features and Benefits

Universal Mounting Bracket

  • Flange mounted with elongated holes allowing for easy alignment of installation
  • Composite molded bushing eliminates corrosion and build-up between bracket and mounting tube. Patented tensioning system allows constant blade pressure to belt
  • Set screw that allows pre-tensioning of cleaner making it more accurate

Designed with your maintenance personnel’s safety and time in mind!

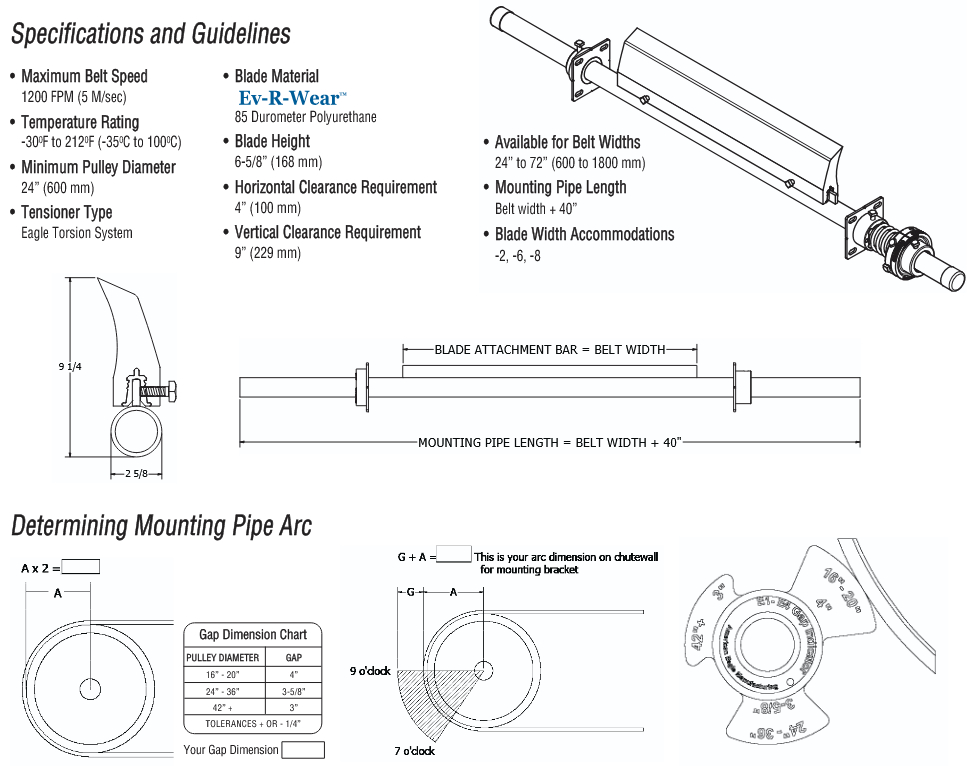

Specifications and Guidelines

Tensioner Type: Eagle Torsion System
Blade Height: 6-5/8″
Pulley Diameter: 24″ Plus (600 mm Plus)
Belt Speed: Max 1200 FPM (365.7 m/min)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)

Available in Stainless Steel

Ordering Part Number

BELT WIDTH-2" BLADE WIDTHPART NUMBER-8" BLADE WIDTHPART NUMBER
18”16”E1HPCSM1810”E1HPCSM18-8
24”22”E1HPCSM2416”E1HPCSM24-8
30”28”E1HPCSM3022"E1HPCSM30-8
36”34”E1HPCSM3628"E1HPCSM36-8
42”40”E1HPCSM4234"E1HPCSM42-8
48”46”E1HPCSM4840"E1HPCSM48-8
54”52”E1HPCSM5446"E1HPCSM54-8
60”58”E1HPCSM6052"E1HPCSM60-8
72”70”E1HPCSM7264"E1HPCSM72-8

Note: After choosing proper belt cleaner size, please read Installation Instructions for installation checklist to confirm any additional items that may be needed to install belt cleaner on conveyor.

Replacement Blades

Learn More …

blade-blueblade-orangeblade-greenblade-redblade-white
Eagle Ev-R-Wear™
High Performance
Blue 85A
Urethane
Polyurethane
Orange 85A
Chemical / Acid
Resistant
Green 80A
High Heat
-40 to 300 °F
Red 95A
Food Grade
Polyurethane
White 85A

Belt Cleaning Brochure

Product Resources

Brochure
Installation Instructions
DataSheet
Engineering Drawing
Dual Tensioner Drawing
