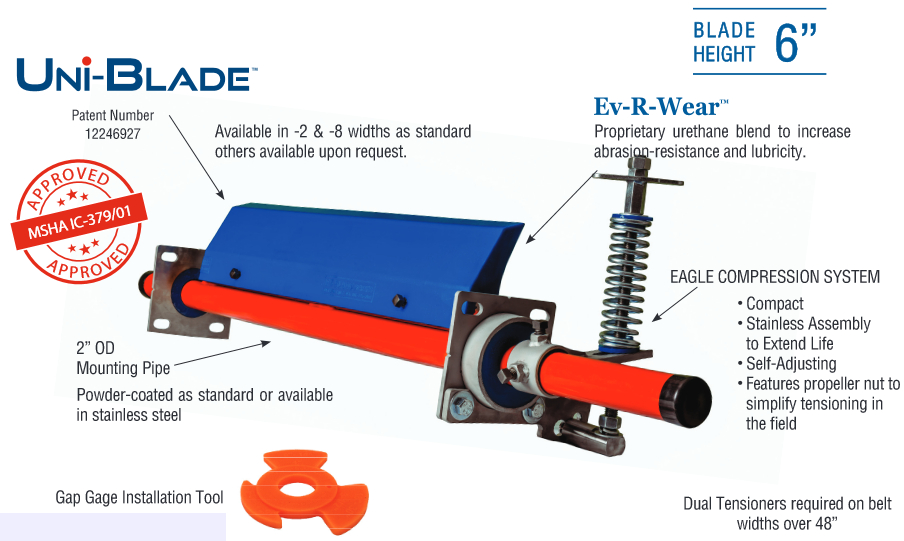

Eagle Compression System
- Compact
- Stainless Assembly
to Extend Life - Self-Adjusting
- Features propeller nut to
simplify tensioning in
the field
Ev-R-Wear™ Blade
Our special formulated urethane with additives has been tested and proven to last longer than any other blade on the market.
- Premium urethane
- Additive for lubricity (non-stick)
- Additive for high abrasion
“With over 35 years molding experience.”
Features and Benefits
Universal Mounting Bracket
- Flange mounted with elongated holes allowing for easy alignment of installation
- Composite molded bushing eliminates corrosion and build-up between bracket and mounting tube. Allow constant blade pressure to belt
- Set screw that allows pre-tensioning of cleaner making it more accurate
Designed with your maintenance personnel’s safety and time in mind!
Specifications and Guidelines
Tensioner Type: Eagle Compression System
Blade Height: 6″
Pulley Diameter: 10″ to 24″ (250 to 600 mm)
Belt Speed: Max 800 FPM (243.8 m/min)
Temperature Rating: -30°F to 212°F (-35°C to 100°C)
Available in Stainless Steel
Ordering Part Number
| BELT WIDTH | -2" BLADE WIDTH | PART NUMBER | -8" BLADE WIDTH | PART NUMBER |
|---|---|---|---|---|
| 24" | 22" | E5SDCSM24 | 16" | E5SDCSM24-8 |
| 30" | 28" | E5SDCSM30 | 22" | E5SDCSM30-8 |
| 36" | 34" | E5SDCSM36 | 28" | E5SDCSM36-8 |
| 42" | 40" | E5SDCSM42 | 34" | E5SDCSM42-8 |
| 48" | 46" | E5SDCDM48 | 40" | E5SDCDM48-8 |
| 54" | 52" | E5SDCDM54 | 46" | E5SDCDM54-8 |
| 60" | 58" | E5SDCDM60 | 52" | E5SDCDM60-8 |
| 72" | 70" | E5SDCDM72 | 64" | E5SDCDM72-8 |
Replacement Blades
 |  |  |  |  |
| Eagle Ev-R-Wear™ High Performance Blue 85A | Urethane Polyurethane Orange 85A | Chemical / Acid Resistant Green 80A | High Heat -40 to 300 °F Red 95A | Food Grade Polyurethane White 85A |
